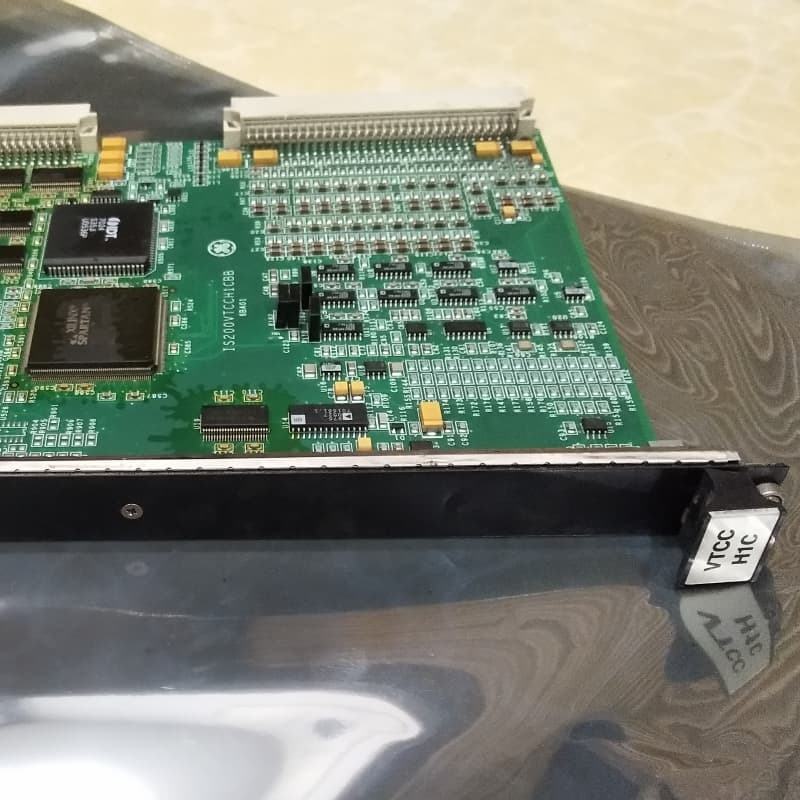

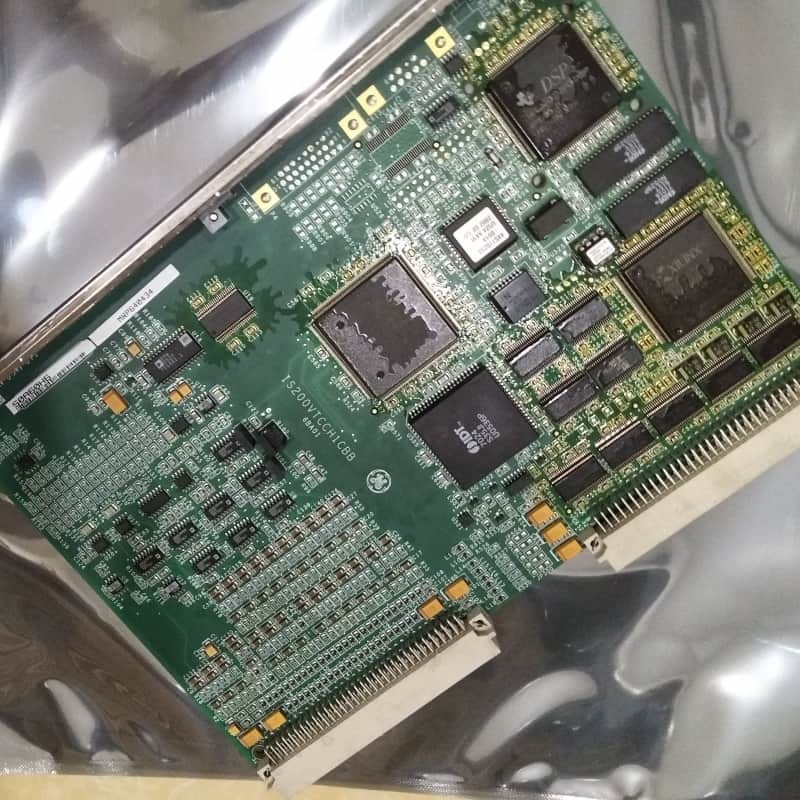

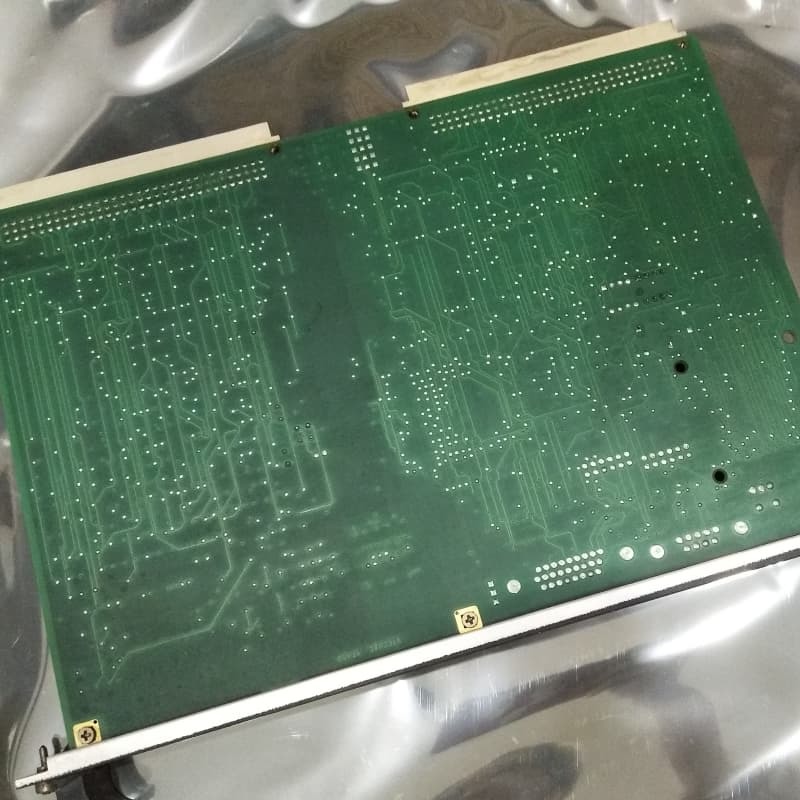

GE IS200VTCCH1CBB Mark VI Turbine Control PCB

Place of Origin US
Markenname GE
Model Number IS200VTCCH1CBB
Minimum Order Quantity 1pc
Preis $3900
Packaging Details New and original factory, individual box packing
Delivery Time 5-7days
Payment Terms T/T
Supply Ability 999pcs

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Name GE IS200VTCCH1CBB Printed Circuit Board Product ID IS200VTCCH1CBB
Series Mark VI Function Discrete Output pack
Product Net Depth/Length 330mm Product Net Height 200mm
Product Net Width 100mm Product Net Weight 2kg
Warranty 1year
Hervorheben

GE Mark VI turbine control PCB

,

turbine control PCB with warranty

,

GE IS200VTCCH1CBB circuit board

Hinterlass eine Nachricht
Produkt-Beschreibung
GE IS200VTCCH1CBB Printed Circuit Board
Product Specifications
Attribute Value
Name GE IS200VTCCH1CBB Printed Circuit Board
Product ID IS200VTCCH1CBB
Series Mark VI
Function Discrete Output pack
Product Net Depth/Length 330mm
Product Net Height 200mm
Product Net Width 100mm
Product Net Weight 2kg
Warranty 1 year
Product Description

The GE IS200VTCCH1CBB is a Thermocouple Terminal Board in the Mark VI Turbine Control System, designed for gas, steam, and wind turbine control. It accepts up to 24 thermocouple inputs and mV signals, interfacing with DTTC or TBTC terminal boards. Compatible with simplex and TMR setups, it supports grounded/ungrounded thermocouples up to 984 feet from the control cabinet.

Part of the Mark VI series, it features cold junctions and noise suppression for signal integrity. In TMR systems, it flags faults if signals deviate beyond a set limit from the median value, enhancing reliability. Its part number encodes details like Mark VI compatibility, conformal coating, and revision history.

Key Features
  • Input Capacity: Handles 24 thermocouple/mV inputs, supporting multiple thermocouple types and a -8 to +45 mV range.
  • Flexible Integration: Works with simplex/TMR configurations via TBTC terminal boards; compatible with distant sensors.
  • Signal Integrity: Includes cold junctions and high-frequency noise suppression for accurate measurements.
  • TMR Fault Detection: Identifies signal deviations from the median value, triggering faults to ensure system reliability.
  • Mark VI Compatibility: Integrates with advanced turbine control systems, extending beyond Mark V's limited applications.
GE IS200VTCCH1CBB Mark VI Turbine Control PCB 0 GE IS200VTCCH1CBB Mark VI Turbine Control PCB 1
Compatible Components
DS200DTBBG1ABB
DS200TCCAF1BDF
DS200SDCIG2AFB
IS200ISBBG1AAB
DS200SDCIG2AHB
IS200CABPG1BAA
DS200BDAAG1AAA
IS200DSFCG1AEB
DS200SIOBH1ABA
IS200DRLYH1BBB
