GE IS215ACLEH1A Application Control Layer Module for EX2100
| Place of Origin | USA |
|---|---|
| Markenname | GE |
| Zertifizierung | COO |
| Model Number | IS215ACLEH1A |
| Minimum Order Quantity | 1 |
| Preis | $1800 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Name | GE IS215ACLEH1A Application Control Layer Module | Product ID | IS215ACLEH1A |
|---|---|---|---|
| Series | Mark VI | Product Net Weight | 2kg |
| Product Net Height | 200mm | Product Net Depth/Length | 330mm |
| Product Net Width | 100mm | Warranty | 1 Year |
| Hervorheben | GE EX2100 control module,turbine control layer module,GE IS215ACLEH1A module |
||
Produkt-Beschreibung

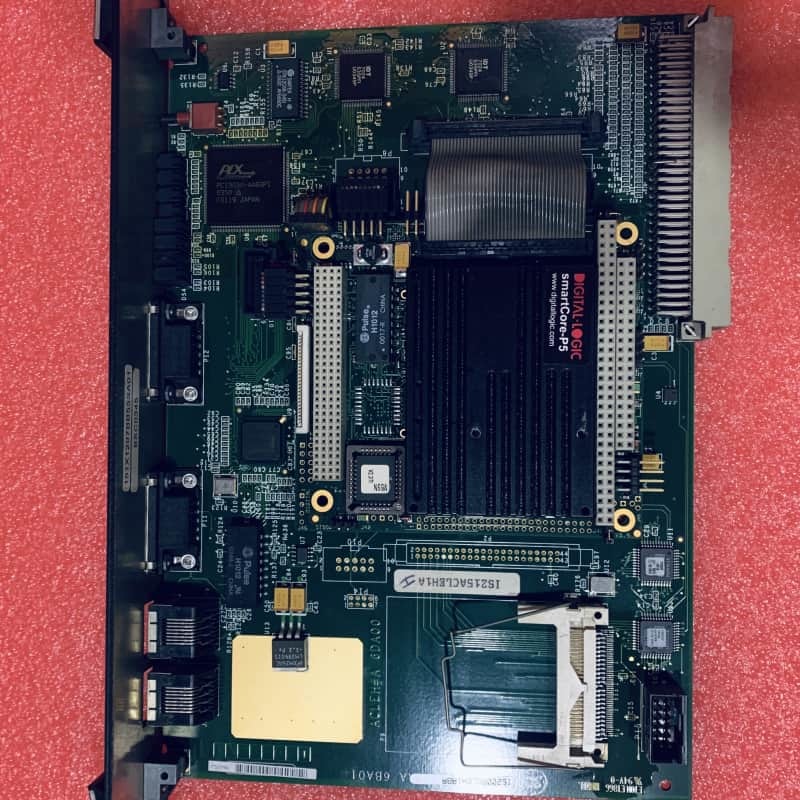

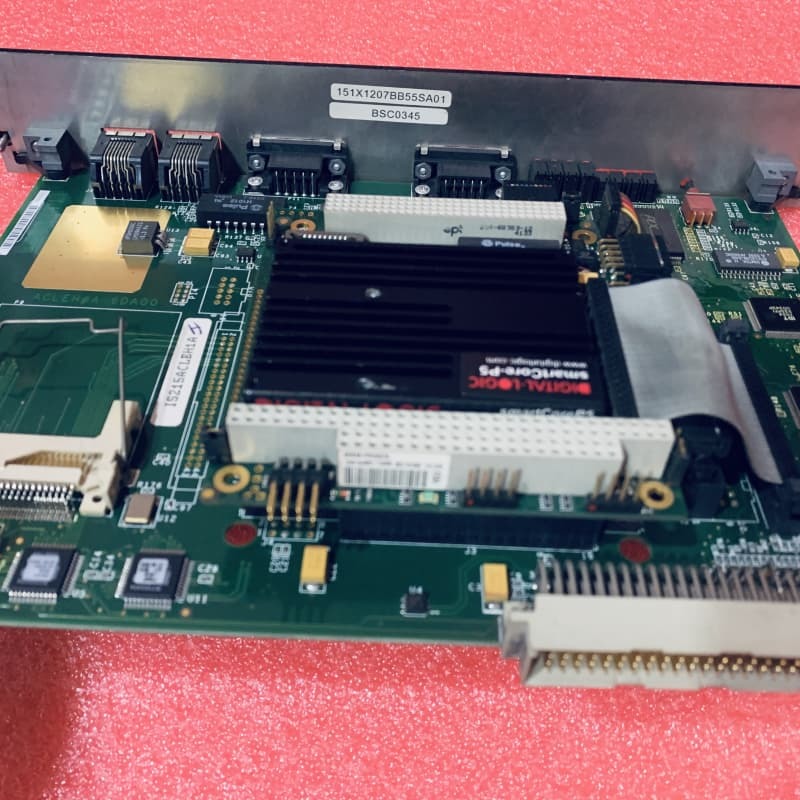

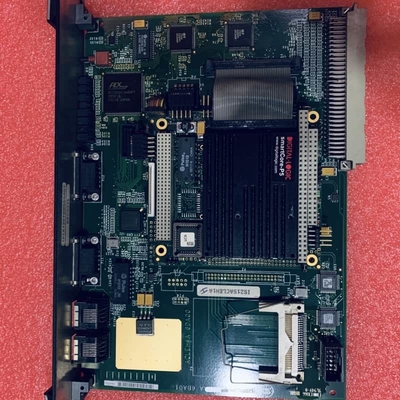

GE IS215ACLEH1A Application Control Layer Module
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS215ACLEH1A Application Control Layer Module |
| Product ID | IS215ACLEH1A |
| Series | Mark VI |
| Product Net Weight | 2kg |
| Product Net Height | 200mm |
| Product Net Depth/Length | 330mm |
| Product Net Width | 100mm |
| Warranty | 1 Year |
Product Overview
The GE IS215ACLEH1A is an Application Control Layer Module in the EX2100 excitation control system, serving as a microprocessor-based master controller. It replaces the IS215ACLAH1A in EX2100 applications, fitting two slots in standard EX2100 racks.
Comprising a PC/104-Plus microprocessor board and carrier board, it handles tasks across Ethernet and serial networks, with hardware including a 400 MHz Celeron/Pentium CPU, 128 MB DRAM, and 256 KB L2 cache. It features two 10BaseT Ethernet ports, RS-232 COM ports, and non-volatile compact flash memory. A metal faceplate with LEDs (Active, OK, ENET) provides operational status, while a reset switch addresses faults.
Key Features
- Master Control Function: Manages excitation control tasks via microprocessor, supporting static/regulator functionality with online setup loading and I/O forcing.
- Flexible Connectivity: Equipped with two Ethernet ports and RS-232 COM ports, enabling communication with toolbox software and external devices via optional serial cables.
- Hardware Integration: Includes DPRAM for real-time communication with DSPX boards, with hardware resolving address contention. Supports expandable DRAM and IDE-based compact flash storage.
- Software Capabilities: Pre-programmed Phoenix BIOS initializes hardware; runtime code (downloaded via Ethernet) enables core functionality. Offers application-level alerts and fault examination.
- Rack Compatibility: Fits EX2100 simplex/redundant racks, replacing ACLA modules while remaining distinct from Innovation Series ACLA setups. LED indicators and a reset switch aid diagnostics and fault management.
