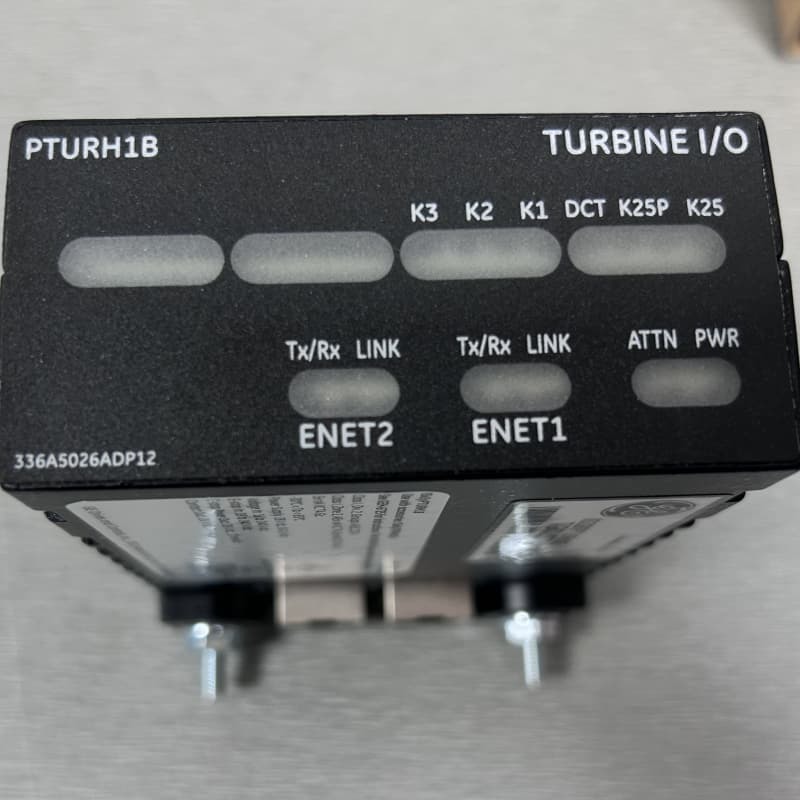

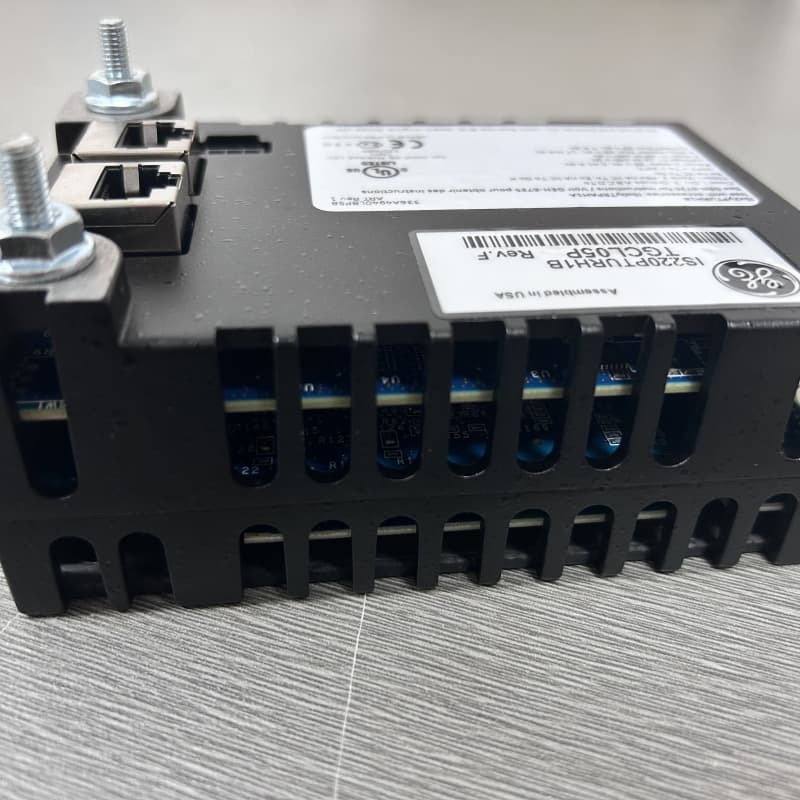

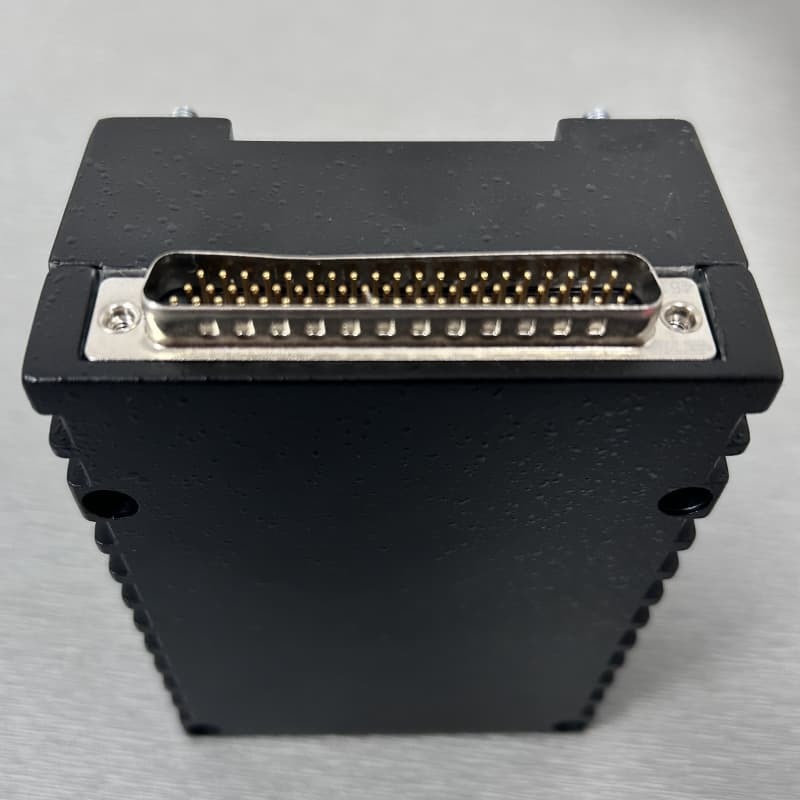

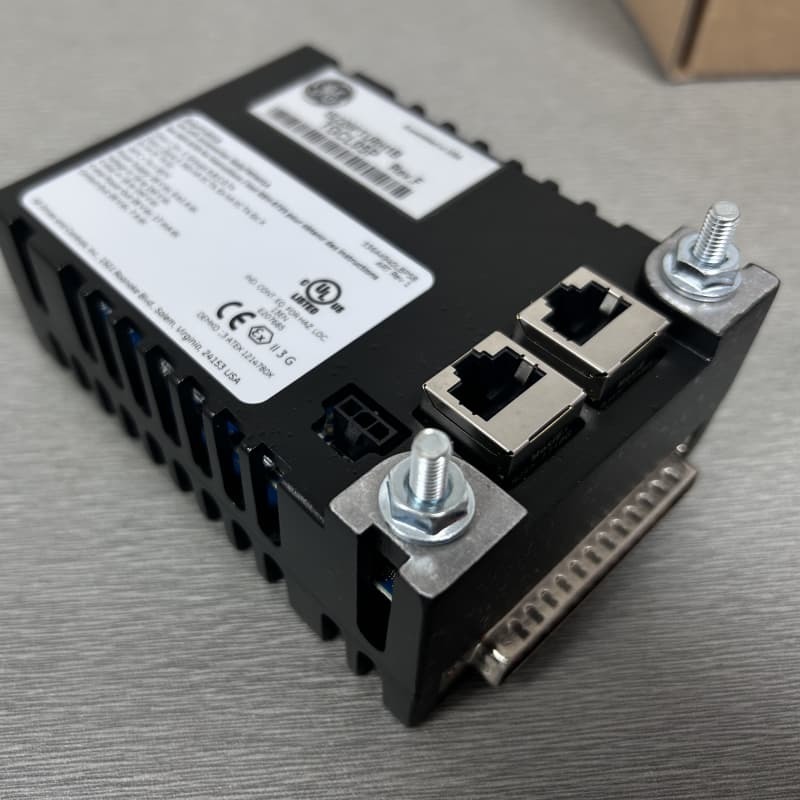

GE IS220PTURH1B Turbine Control I/O Trip Pack
| Place of Origin | US |
|---|---|
| Markenname | GE |
| Zertifizierung | COO |
| Model Number | IS220PTURH1B |
| Minimum Order Quantity | 1pc |
| Preis | $6500 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Name | GE IS220PTURH1B Turbine-Specific Primary I/O Trip Pack | Product ID | IS220PTURH1B |
|---|---|---|---|
| Function | IO PACK, DISCRETE IO MODULE | Series | I/O Pack |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Hervorheben | GE turbine control I/O pack,turbine control trip module,GE IS220PTURH1B I/O pack |
||
Produkt-Beschreibung
GE IS220PTURH1B Turbine-Specific Primary I/O Trip Pack
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS220PTURH1B Turbine-Specific Primary I/O Trip Pack |
| Product ID | IS220PTURH1B |
| Function | IO PACK, DISCRETE IO MODULE |
| Series | I/O Pack |
| Dimensions (LxWxH) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS220PTURH1B is a Primary I/O Trip Pack part of the Mark VI Speedtronic Series, designed for critical trip functionality in turbine control systems.
Key Features
- Hazardous Location Compatibility: Approved for hazardous locations when combined with the IS200TRPAS1A terminal board
- Input Specifications: Supports E-stop inputs and speed inputs via the TRPA terminal board
- Robust Construction: Reinforced plastic chassis with two screw standoffs for secure installation
- Diagnostic Capabilities: Front-panel LED indicators and IR port for real-time status monitoring
- Network Connectivity: Dual Ethernet ports for reliable data exchange in control systems
- Special Assembly: "IS220" prefix denotes domestically manufactured GE product
Compatible Components
| DS200FCSAG2ACB | IS200DAMAG1BCB |
| DS200FCSAG1ACB | IS200DAMBG1ACB |
| DS200FCGDH1BCA | IS200DAMDG1A |
| DS200FCGDH1BAA | IS200DAMDG2AAA |
| DS200FHVAG1ABA | IS200DAMEG1ABA |
| DS200FGPAG1ALD | IS200DRLYH1B |
| DS200FSAAG1ABA | IS200DRLYH1BBB |
