GE IS215UCCCH4A VME Controller Board 100mm x 200mm Mark VIe
| Herkunftsort | USA |
|---|---|
| Markenname | GE |
| Zertifizierung | COO |
| Modellnummer | IS215UCCCH4A |
| Min Bestellmenge | 1 |
| Preis | $3000 |
| Lieferzeit | 5-7 Tage |
| Zahlungsbedingungen | T/t |
| Versorgungsmaterial-Fähigkeit | 999 |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Name | GE IS215UCCCH4A VME Controller Board | Produkt -ID | IS215UCCCH4A |
|---|---|---|---|
| Serie | Mark Vie | Produktnetzbreite | 100 mm |
| Produktnetzhöhe | 200 mm | Produktnetz Tiefe/Länge | 330 mm |
| Garantie | 1 Jahr | Produktnetzgewicht | 2 kg |
| Hervorheben | GE VME controller board Mark VIe,GE turbine control board 100mm x 200mm,IS215UCCCH4A VME board with warranty |
||
Produkt-Beschreibung

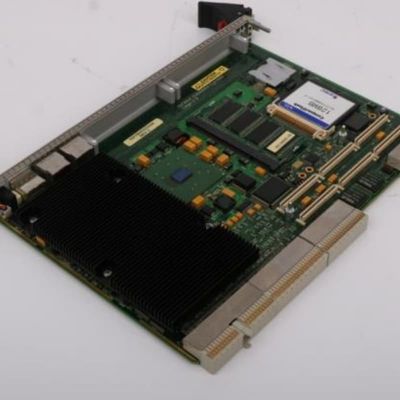

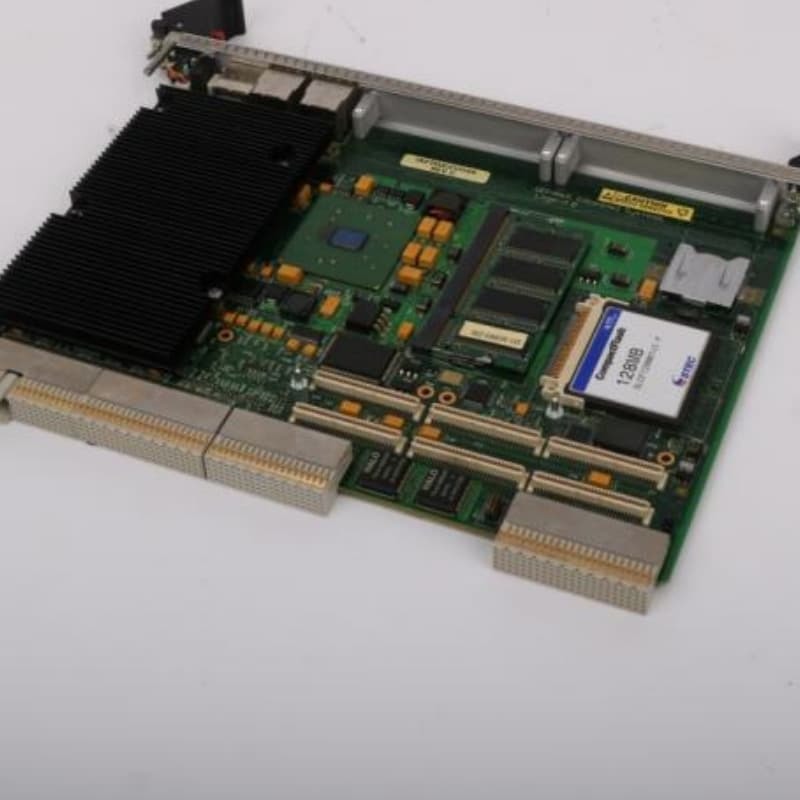

GE IS215UCCCH4A VME Controller Board
Product Overview
The GE IS215UCCCH4A is a Controller Card belonging to GE’s Mark VIe Series, designed for gas turbine control systems.Powered by a 1.6 GHz Intel Pentium M Processor and running the QNX Neutrino operating system, it delivers reliable processing for turbine control tasks.
Physically, its faceplate features six Ethernet-style ports and diagnostic LEDs. The card detects system errors during startup, download, and normal operation; diagnostic alarms are recorded historically on WorkstationST and can be displayed/reset via ToolboxST. It requires precise DC power inputs: +5V DC, +3.3V DC, and +12V DC to ensure stable performance.
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS215UCCCH4A VME Controller Board |
| Product ID | IS215UCCCH4A |
| Series | Mark VI |
| Warranty | 1 Year |
| Dimensions (W × H × D) | 100mm × 200mm × 330mm |
| Weight | 2kg |
Key Features
Powerful Processing Core: Equipped with a 1.6 GHz Intel Pentium M Processor and QNX Neutrino OS, plus 256 MB DRAM/128 MB flash memory, enabling efficient data processing and real-time control for gas turbine systems.
Modular & Compact Design: Functions as a 3U compact PCI/VME board with an integrated IS200 EPMC daughter board, balancing modularity for maintenance and compactness for space-constrained control cabinets.
Ethernet Connectivity: Six labeled Ethernet ports on the faceplate support dedicated network links, ensuring seamless communication with other Mark VIe components.
Diagnostic Capabilities: Detects system errors across operational phases; alarms are logged on WorkstationST and manageable via ToolboxST, simplifying troubleshooting and reducing downtime.
Precise Power Requirements: Operates on regulated +5V, +3.3V, and +12V DC inputs with tight voltage tolerances, ensuring consistent performance in industrial environments where power fluctuations are common.
