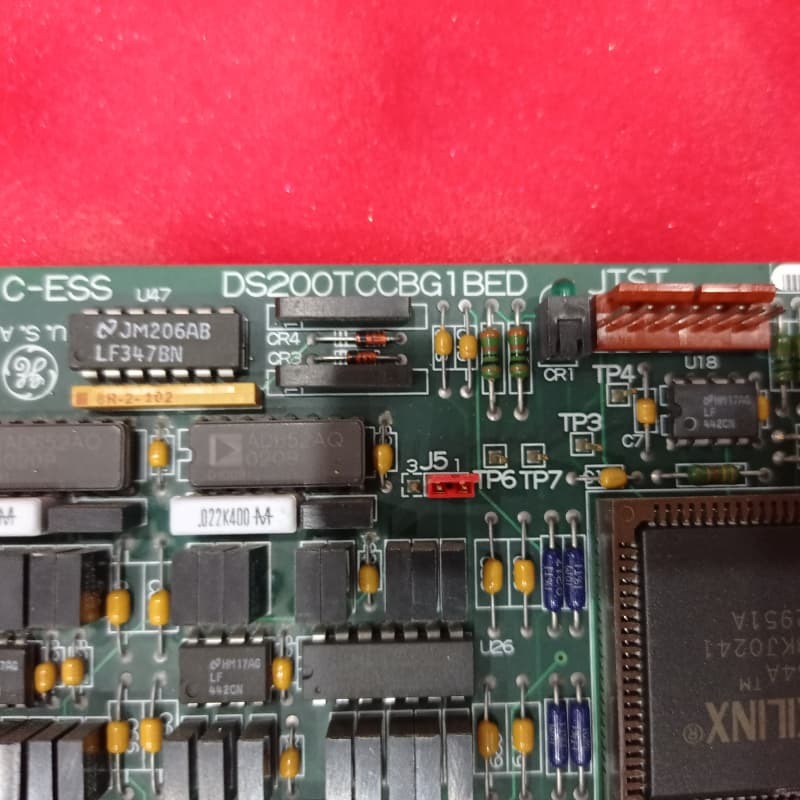

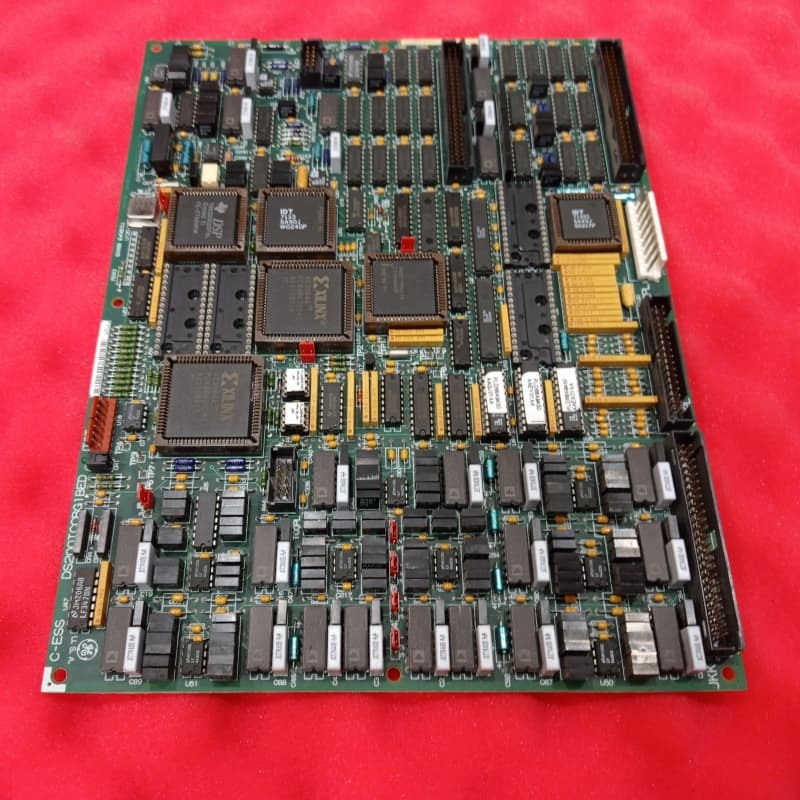

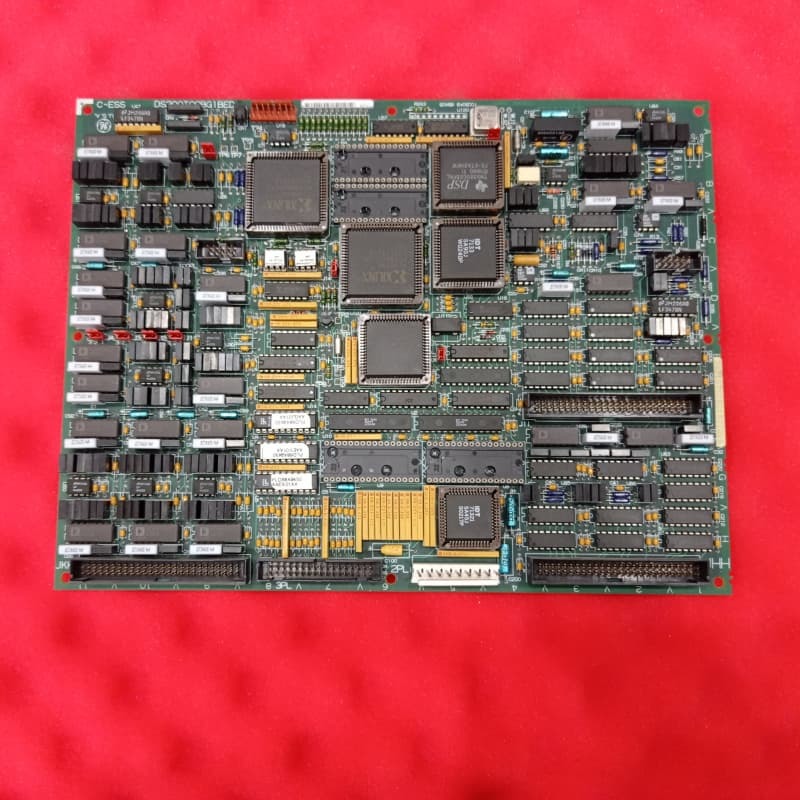

GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control

  • GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
  • GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
  • GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
Herkunftsort uns
Markenname GE
Modellnummer DS200TCCBG1B
Min Bestellmenge 1pc
Preis $3000
Verpackung Informationen Neue und originelle Fabrik, individuelle Boxpackung
Lieferzeit 5-7 Tage
Zahlungsbedingungen T/t
Versorgungsmaterial-Fähigkeit 999pcs

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Name GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 ANALOGE BOARD Mark V GE Turbine Control Produkt -ID DS200TCCBG1B
Serie Mark v Funktion Diskretes Ausgangspaket
Produktnetz Tiefe/Länge 330 mm Produktnetzhöhe 200 mm
Produktnetzbreite 100 mm Produktnetzgewicht 2 kg
Garantie 1year
Hervorheben

GE Turbine Control analog board

,

DS200TCCBG1B I/O board

,

Mark V turbine control board
Hinterlass eine Nachricht
Produkt-Beschreibung
GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
The GE DS200TCCBG1B is an I/O TC2000 Analog Board designed for GE's Speedtronic Mark V gas turbine control systems. A revised variant of the original DS200TCCBG1 parent board, it leverages GE's patented Speedtronic technology and fits within the legacy Mark V Series, despite the series being obsolete.
Product Details
Its core hardware includes an 80196 CPU, multiple PROM modules, one side-visible LED for status monitoring, and two 50-pin connectors. It features three configurable jumpers--3-pin design covering two pins at a time--allowing installers to adjust settings to match drive specifications. Default positions suffice for most cases, with adjustments guided by factory documentation.
Eight connectors enable system integration: 2PL (TCPS power), 3PL (COREBUS signals), JHH (TBCB inputs), JII (TBCB RTD inputs), JMP (TCEB PT/CT signals), plus JKK, JTEST, and TCQPL (vestigial, unused in normal operation).
Key Features
  • Configurable Jumpers: Three jumpers (JP1-JP3) enable customization of settings to match drive requirements, with clear guidance for adjustment and default positions for simplicity.
  • Central Processing & Memory: Equipped with an 80196 CPU and PROM modules, processing analog signals and executing control logic for turbine operations.
  • Dedicated Connectivity: Eight connectors---five functional, three vestigial interface with key Mark V components (TCPS, TBCB, TCEB boards), ensuring seamless signal transmission.
  • Status Monitoring: A side-visible LED provides at-a-glance operational status, aiding quick diagnostics.
GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control 0 GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control 1
