CE311 444-311-000-023 Vibration Sensor Piezoelectric Accelerometer

  • CE311 444-311-000-023 Vibration Sensor Piezoelectric Accelerometer
  • CE311 444-311-000-023 Vibration Sensor Piezoelectric Accelerometer
  • CE311 444-311-000-023 Vibration Sensor Piezoelectric Accelerometer
Herkunftsort Schweiz
Markenname PLC
Zertifizierung COO ,COC ,CQ
Modellnummer CE311 444-311-000-023
Dokument CE311-piezoelectric-acceler...et.pdf
Min Bestellmenge 1
Preis $10000
Lieferzeit 5-7 Tage
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 999
Produktdetails
Produkt-ID CE311 444-311-000-023 Vibrationssensor Piezoelektrischer Beschleunigungsmesser Typ SCHWINGUNGSSENSOR
Serie CE311 Modellnummer CE311 444-311-000-023
Garantie 1 Jahr Funktion Gut
Zustand Neu
Hinterlass eine Nachricht
Produkt-Beschreibung
CE311 444-311-000-023 Vibration Sensor Piezoelectric Accelerometer

The CE311 piezoelectric accelerometer serves as a professional vibration sensor, specially developed for machinery condition monitoring and equipment protection. It delivers stable and reliable performance even in tough industrial settings and explosive hazardous working areas.
Built with high-quality polycrystalline materials, the CE311 adopts a symmetrical shear mode sensing structure to ensure accurate and consistent vibration measurement data. This vibration accelerometer comes with an integrated twisted-pair shielded cable, connected via a fully hermetically sealed interface.

Different versions/parameters of the piezoelectric accelerometer:

Standard version with 3 m integral cable-444-311-000-013
Standard version with 6 m integral cable-444-311-000-023
Standard version with 12 m integral cable-444-311-000-033
Standard version with 20 m integral cable-444-311-000-043
Ex version with 3 m integral cable-444-311-000-113
Ex version with 6 m integral cable-444-311-000-123

Technical Specifications
Item
Details
Type
 Vibration Sensor
Weight
Sensor 245 g (0.54 lb) + Cable135 g/m (0.091 lb/ft)
Temperature
±5% between −40 and 125°C (−40 to 257°F)
Voltage
 15 to 28 VDC
Application

Power / Electric Power,Metallurgy (Steel, Non-ferrous Metals),Robots
Certification
COO ,COC ,CQ
Product Images

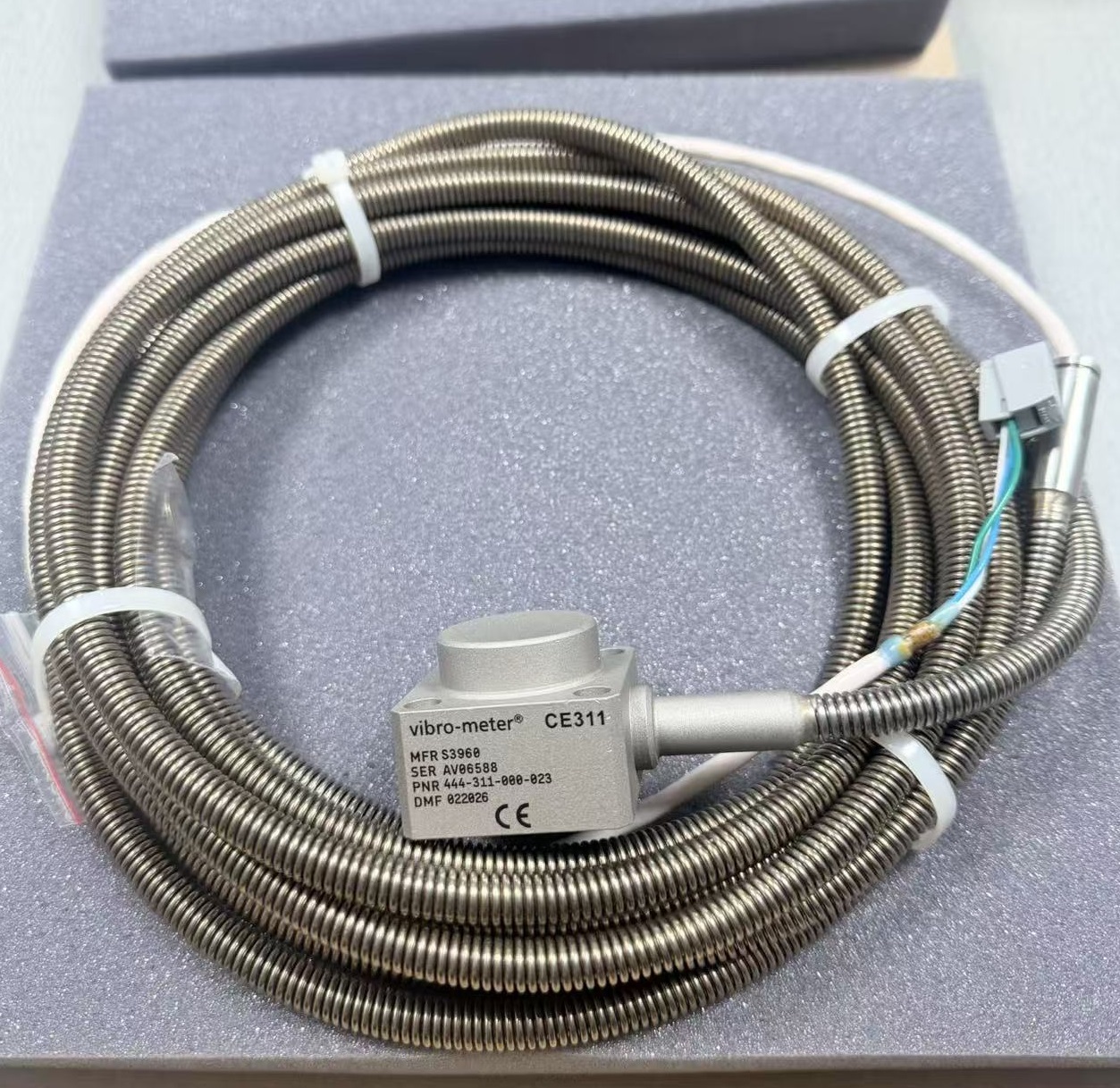

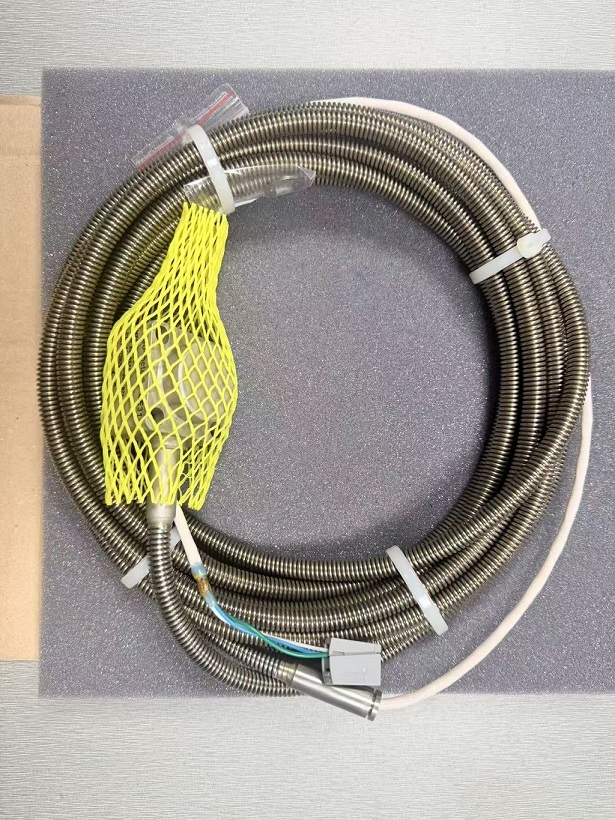

CE311 444-311-000-023 Vibration Sensor Piezoelectric Accelerometer 0
CE311 444-311-000-023 Vibration Sensor Piezoelectric Accelerometer 1
CE311 444-311-000-023 Vibration Sensor Piezoelectric Accelerometer 2

CE311 444-311-000-023 Vibration Sensor Piezoelectric Accelerometer 3
Main Application Countries
 Saudi Arabia, UAE,Germany, Brazil, India, and more than a hundred other countries

ABB Main Application Areas

  • General Rotating Machinery
  • Energy and Power
  • Hazardous and Harsh Environments
  • Aviation and Transportation
  • High-end Manufacturing

CE311 444-311-000-023 Vibration Sensor Piezoelectric Accelerometer 4

Our Advantages
  • Over 10 years of experience in supplying automation modules.
  • Products exported to more than 50 countries.
  • Stable supply channels to ensure a reliable source of goods.
  • Customer repurchase rate exceeds 80%.
FAQ

Q: How soon can the goods be delivered after placing an order?
A: The delivery date is generally 5-7 days.

Q: How is shipping arranged? Can customers arrange their own forwarder?
A: Using standard package, shipping by Fedex,DHL,UPS, and we also support customers to arrange their own forwarder for pickup.

Q: Can extended warranty service be provided?
A:  Extended warranty is ok. Please contact sales for specific costs.

Q: What is the return/exchange policy?
A: Returns and exchanges are allowed for quality issues within the warranty period. For appearance dissatisfaction, returns and exchanges are supported within 7 days.

Q: Are there products in stock? What is the lead time for bulk orders?
A: We have a large inventory.

Installation Requirements
Professional installation is essential to ensure optimal performance, operational safety, and compliance with industry standards. Proper implementation is critical for reliable system integration and long-term operational efficiency.
  • Professional installation required for optimal performance and safety
  • Ensure proper mounting and adequate ventilation
  • Comply with all applicable electrical safety standards
